SKYLIGHT UPSTANDS

Our upstands are made from fiberglass, which guarantees great durability. We make our upstands in various sizes and inclinations. The basic upstand is thermally insulated with 20 mm of polyurethane foam. We also produce upstands with insulation layers 40 mm and 60 mm thick, according to customer requirements. The sandwich construction ensures great toughness. The standard color is RAL 9010, but other color options can be produced upon request. Upstands can also be custom made with connections for various types of roof coverings. Under EU standard CSN EN 1873, roof domes must be mounted at least 15 cm above the waterproofing level.

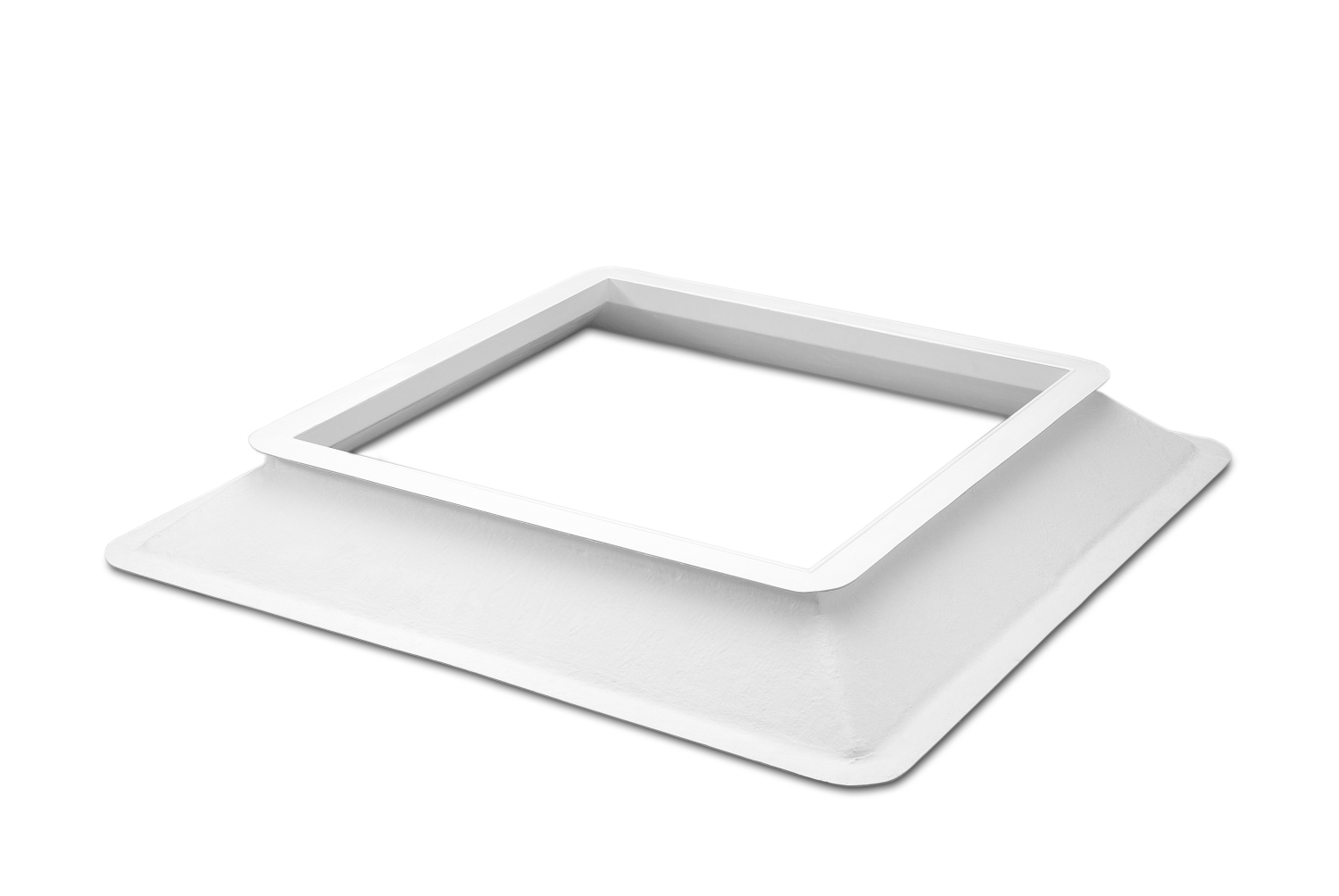

INCLINED UPSTAND 15

inclined, laminated, 15 cm tall

Fiberglass upstand for placement on the surface of the roof. Thermal insulation can be increased with 4 cm or 6 cm of PUR.

Technical drawings Declaration of Performance Reaction to Fire Classification Price list

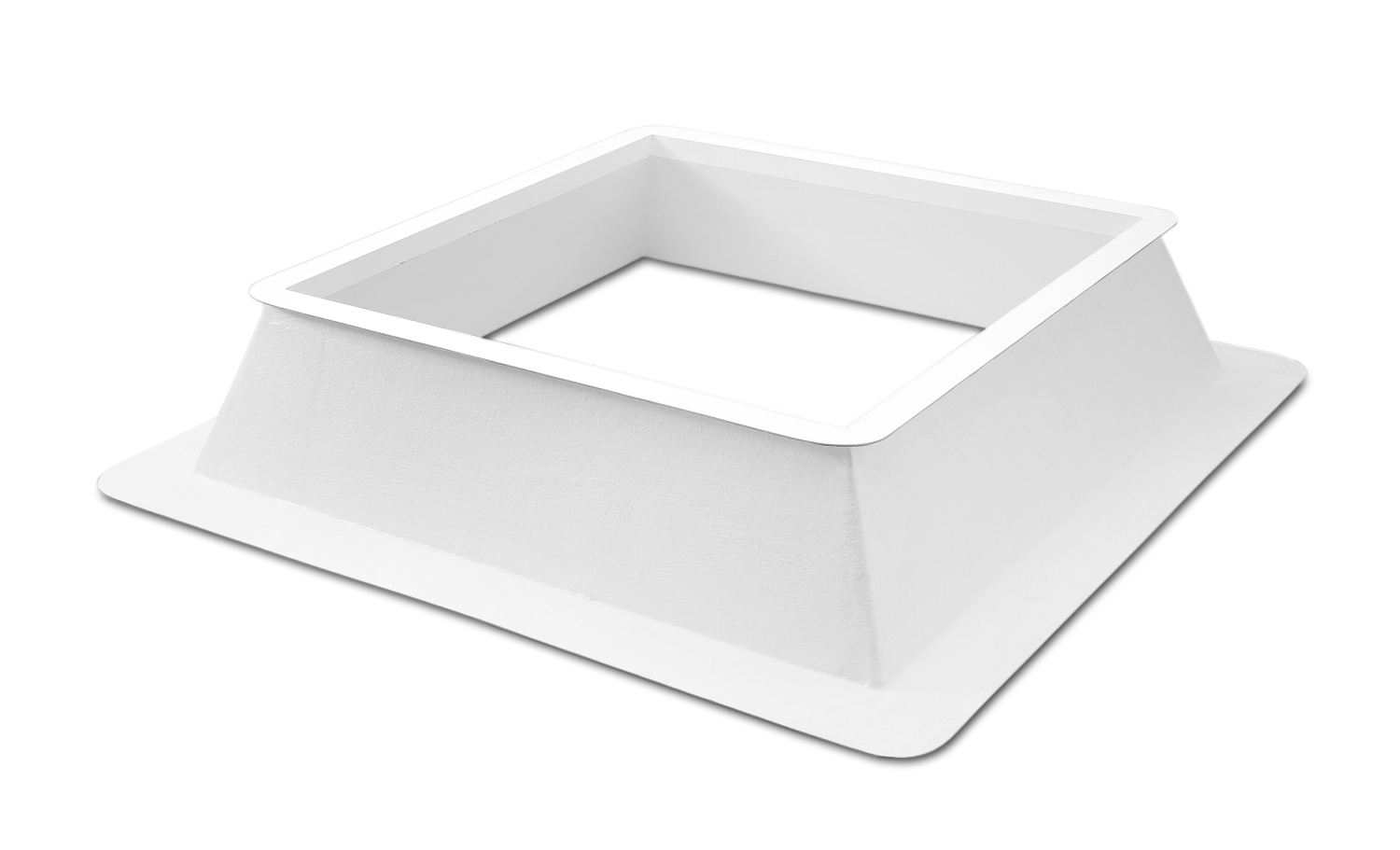

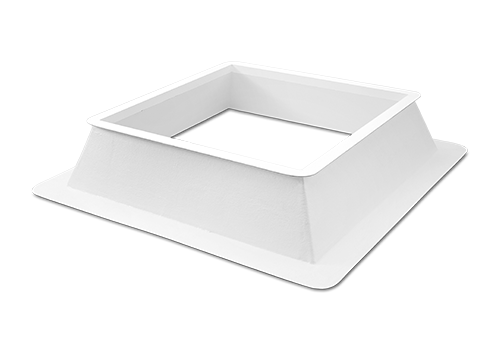

INCLINED UPSTAND 30

inclined, laminated, 30 cm tall

Fiberglass upstand for placement on the surface of the roof. Thermal insulation can be increased with 4 cm or 6 cm of PUR.

Technical drawings Declaration of Performance Reaction to Fire Classification Price list

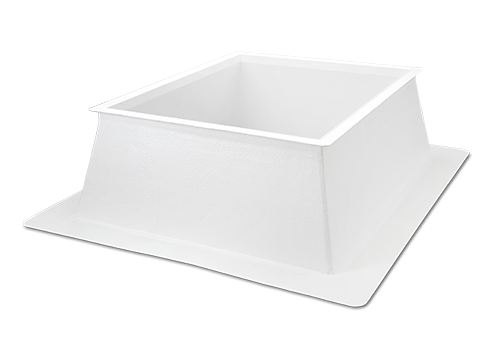

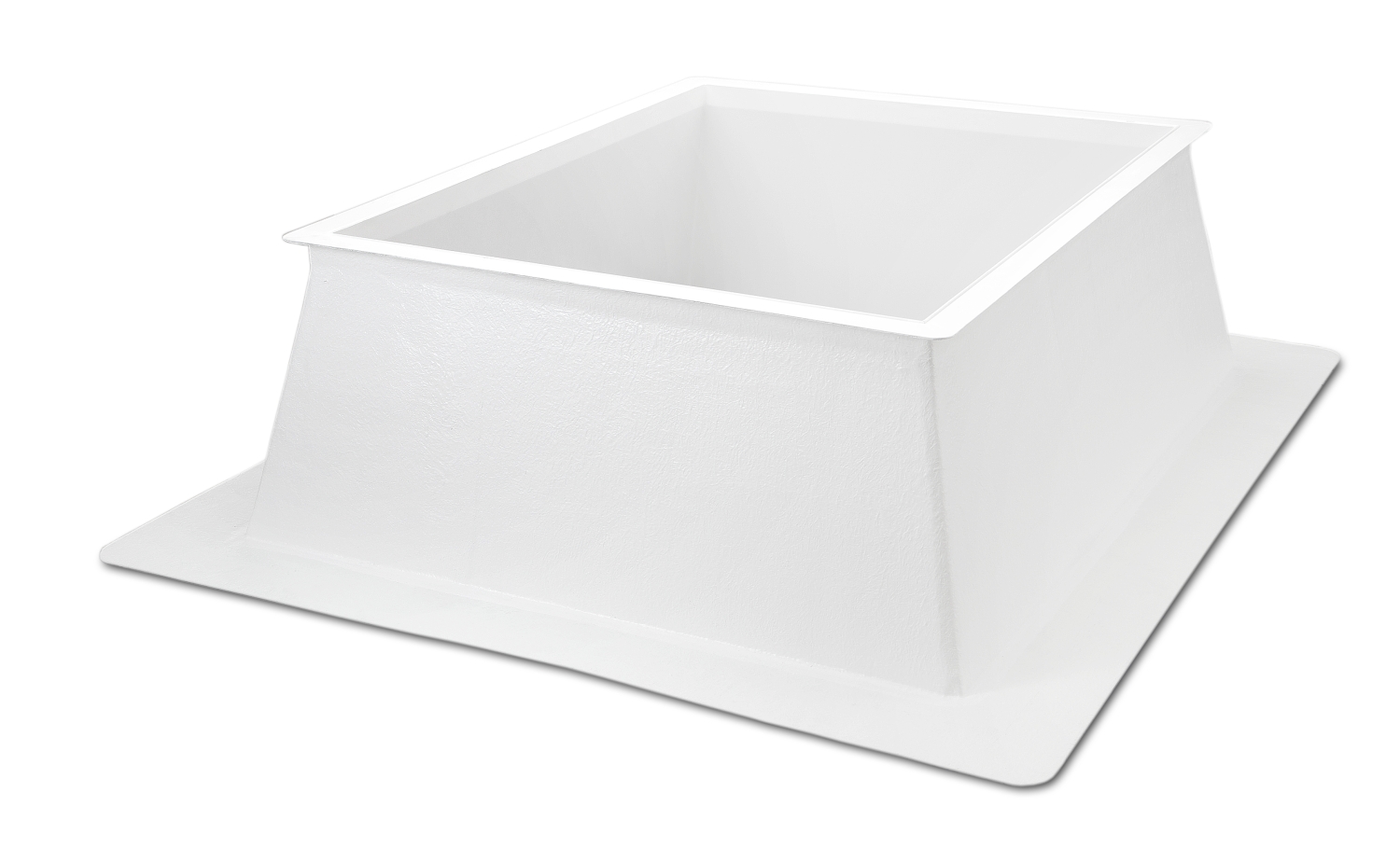

INCLINED UPSTAND 50

inclined, laminated, 50 cm tall

Fiberglass upstand for higher level of thermal insulation. Thermal insulation can be increased with 4 cm or 6 cm of PUR.

Technical drawings Declaration of Performance Reaction to Fire Classification Price list

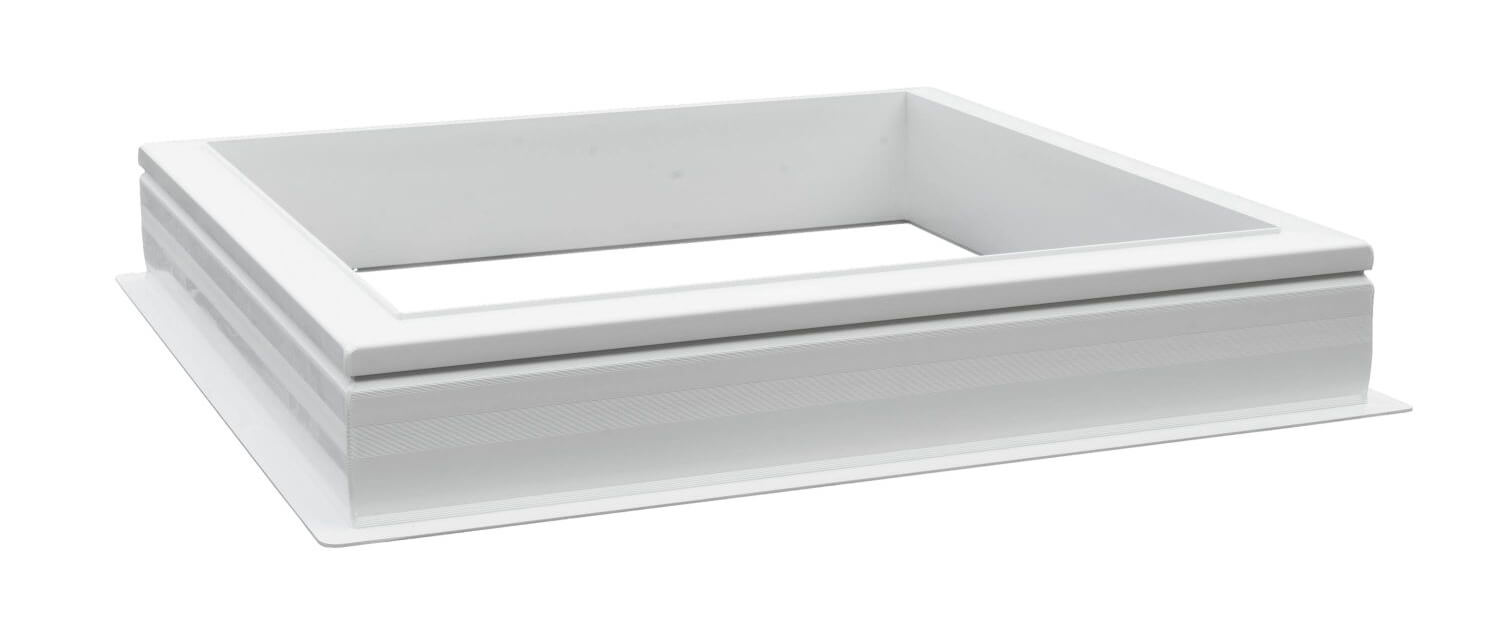

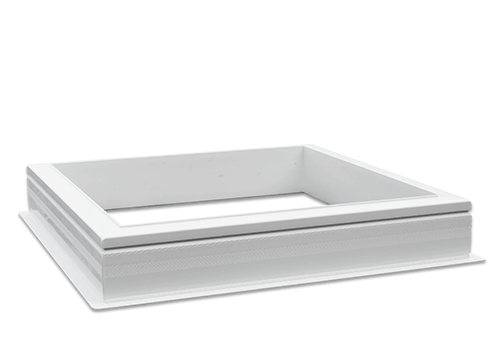

UPRIGHT UPSTAND 15

Flat, laminated, 15 cm tall

Fiberglass upstand for placement on the surface of the roof. Thermal insulation can be increased with 4 cm or 6 cm of PUR.

Technical drawings Declaration of Performance Reaction to Fire Classification Price list

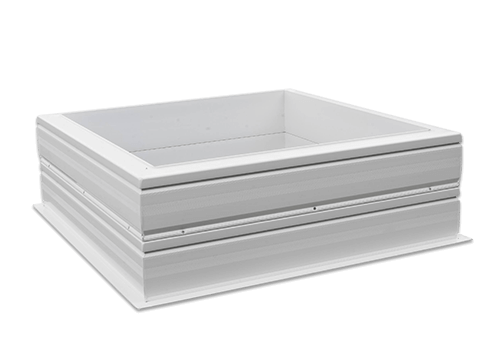

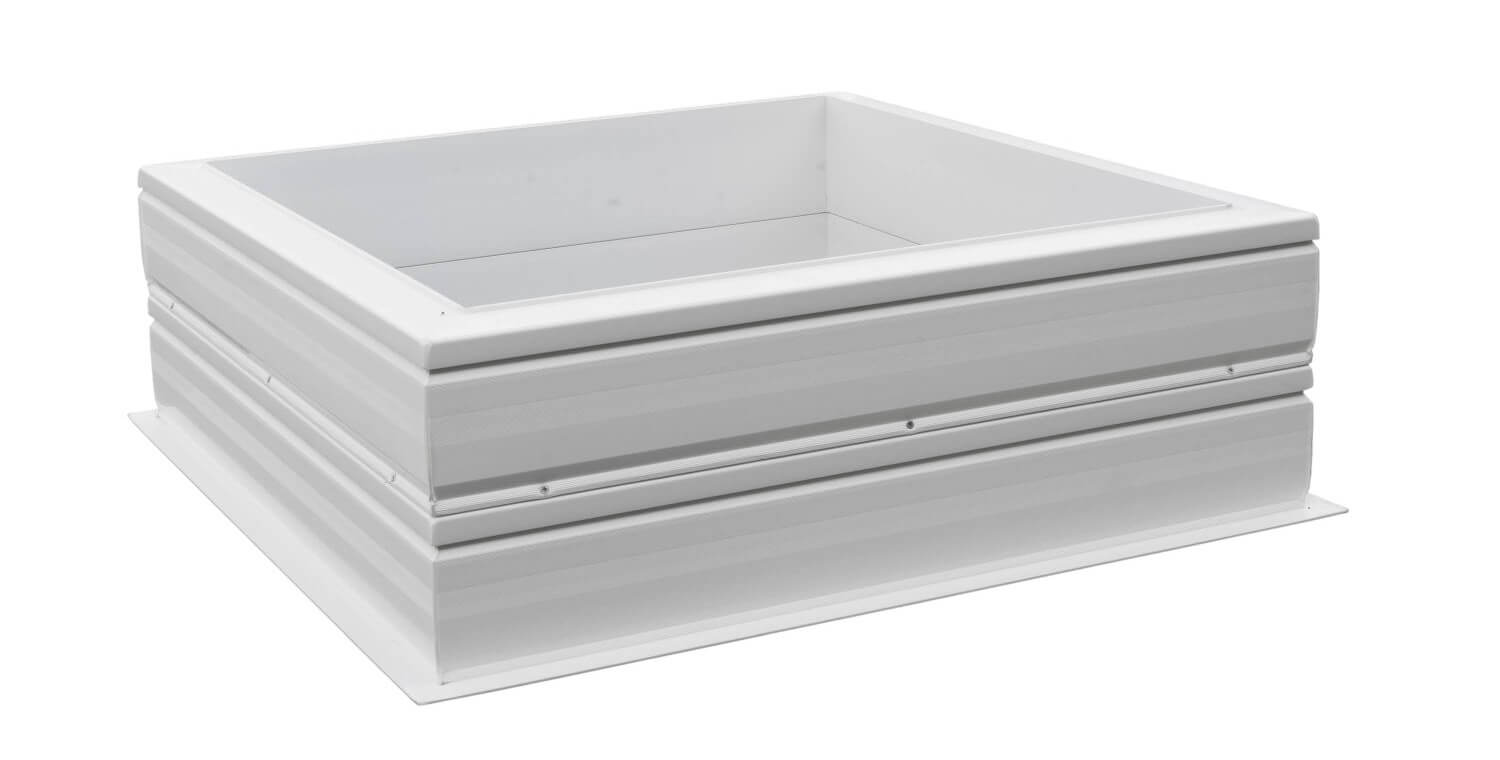

UPRIGHT UPSTAND 30

upright, laminated, 30 cm tall

Fiberglass upstand for placement on roof cladding. Thermal insulation can be increased with 4 cm or 6 cm of PUR.

Technical drawings Declaration of Performance Reaction to Fire Classification Price list

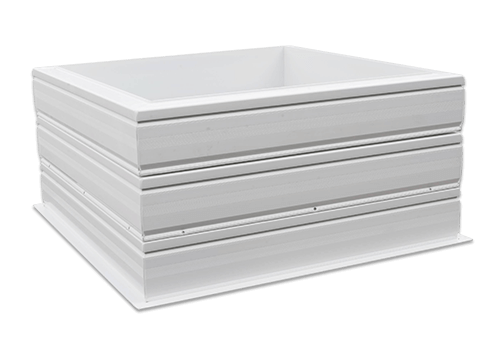

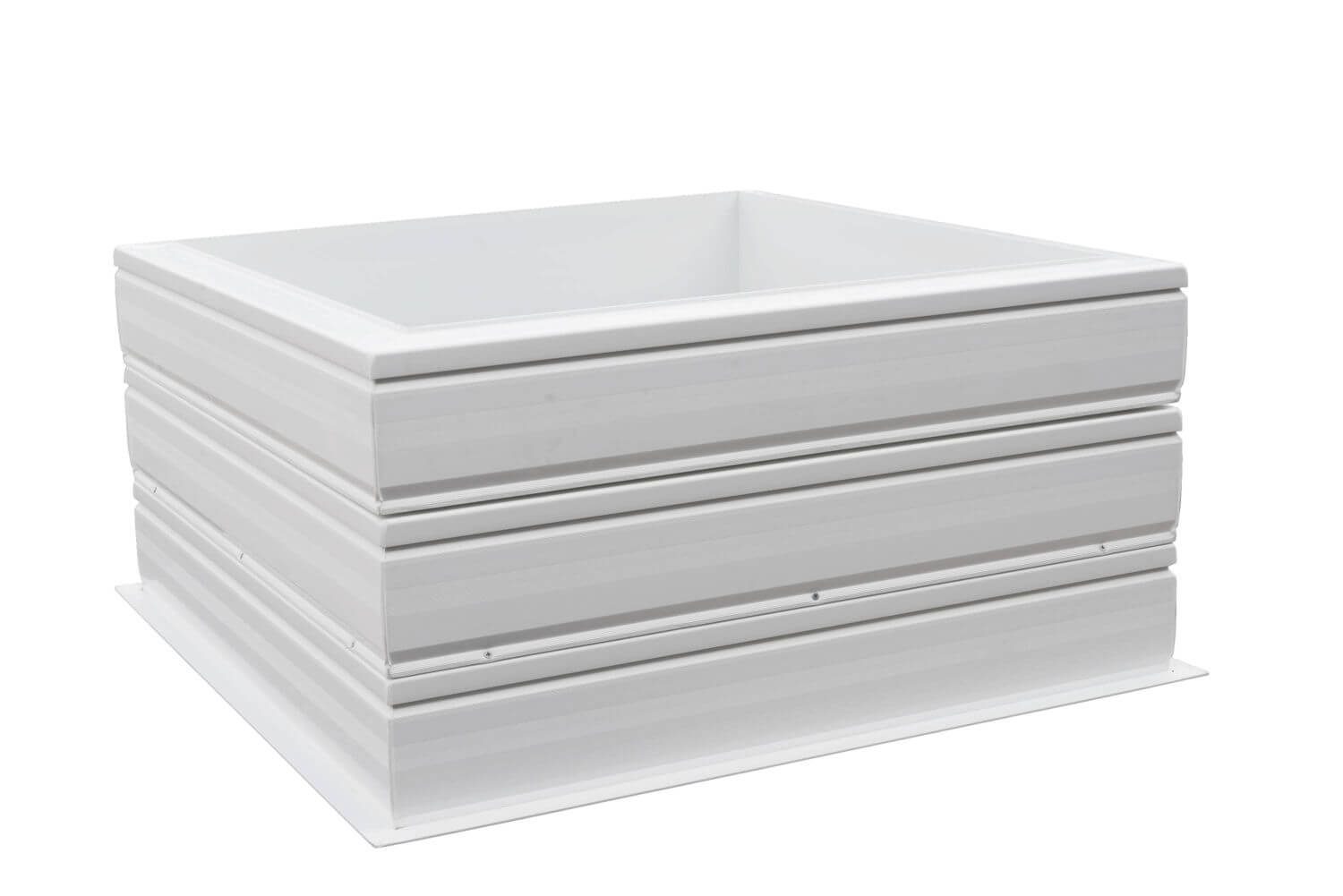

UPRIGHT UPSTAND 50

upright, laminated, 50 cm tall

Fiberglass upstand for higher level of thermal insulation. Thermal insulation can be further increased with 4 cm or 6 cm of PUR.

Technical drawings Declaration of Performance Reaction to Fire Classification Price list

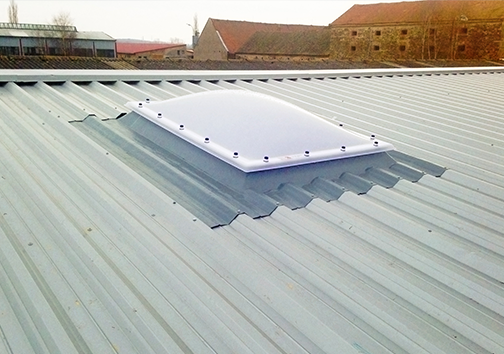

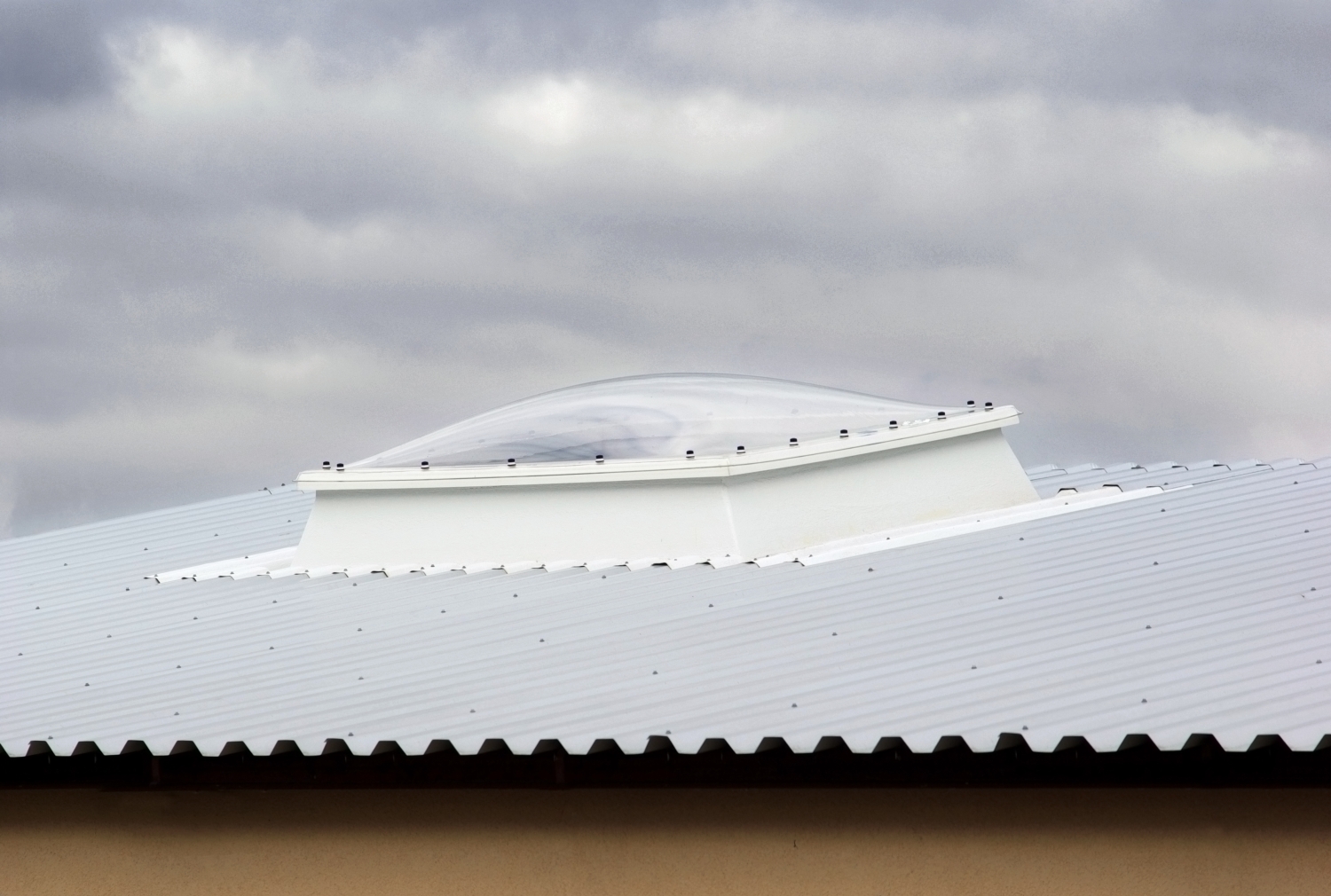

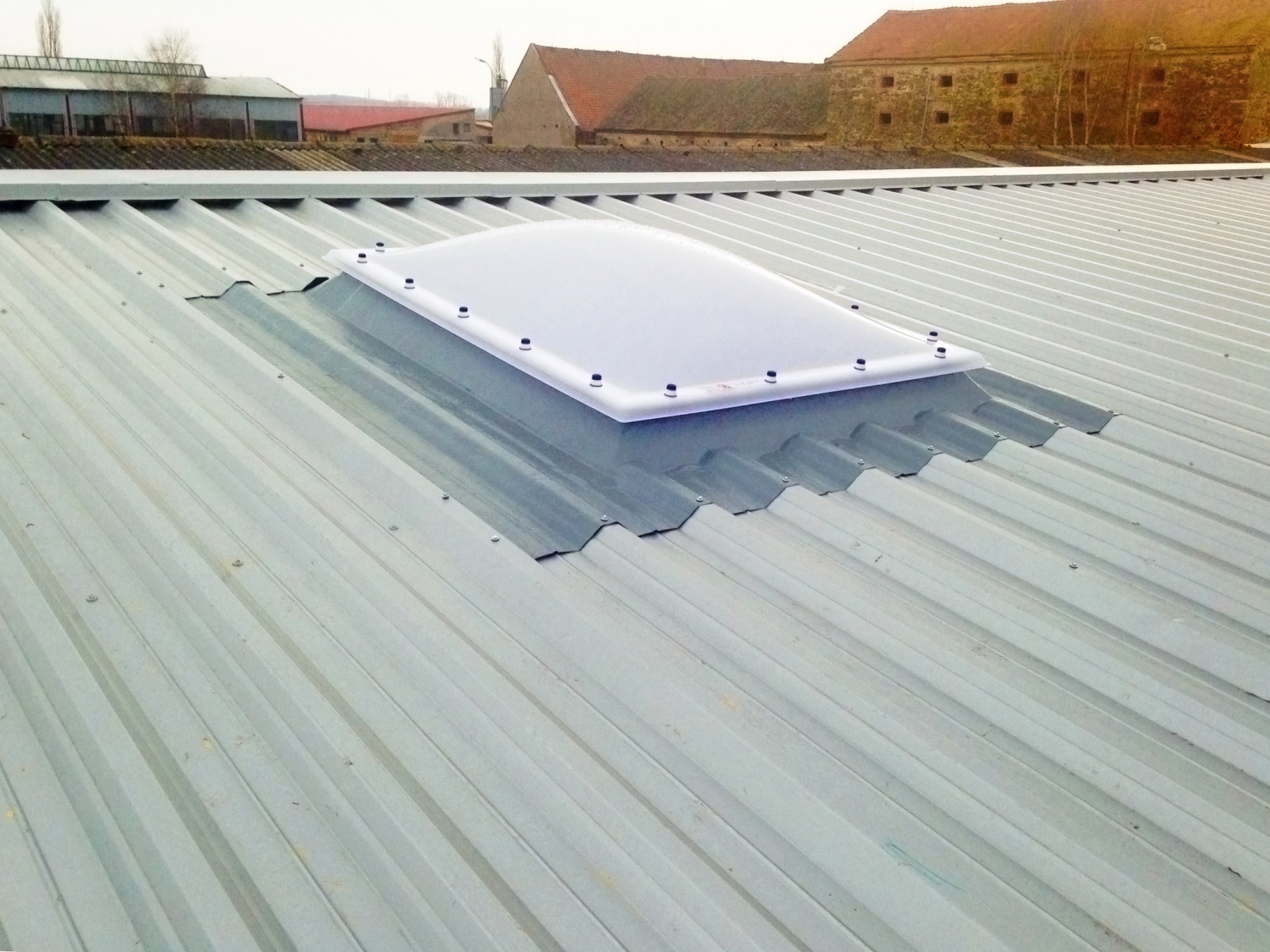

TRAPEZOIDAL PROFILE UPSTANDS

Upstand with profile for trapezoidal panels

We are able to fit our fiberglass profile to all kinds of trapezoidal panels. The profile is compatible with pre-installed trapezoidal panels, and does not require the installation of any waterproofing. A major advantage of this is that the profile can be manufactured to match the RAL color of the roof covering.

Declaration of Performance Reaction to Fire Classification Price on request

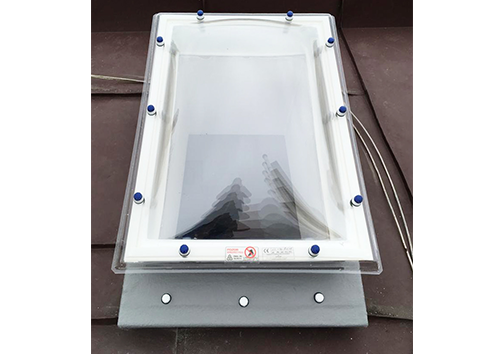

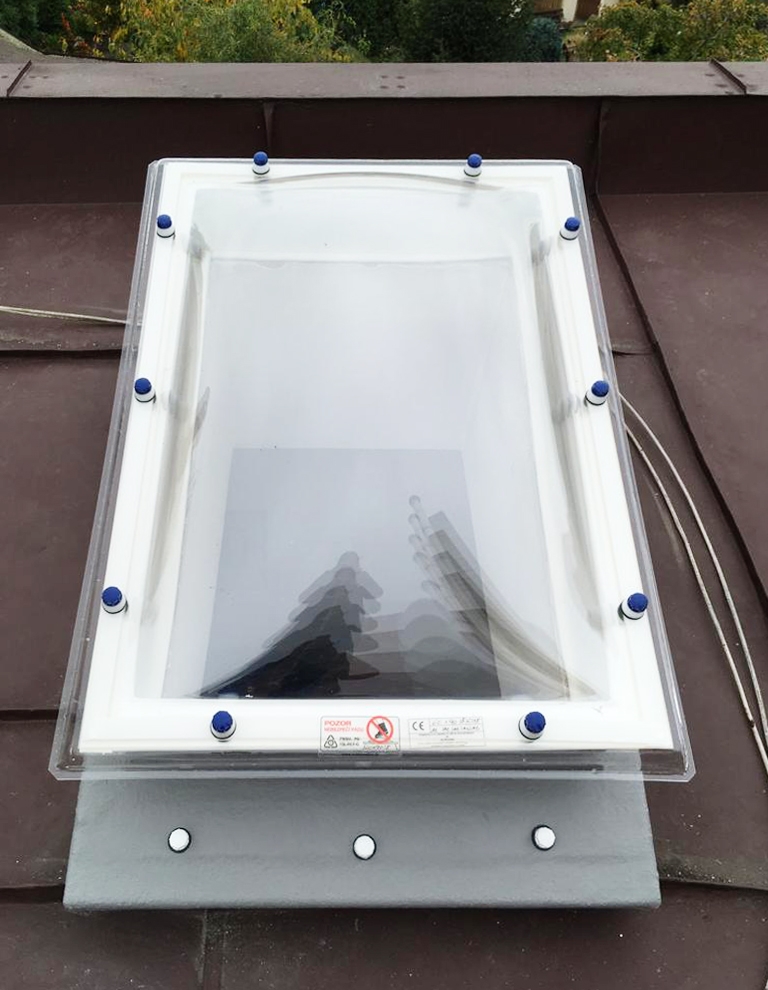

UPSTANDS WITH PROFILE FOR SHEET ROOFS

No need to install waterproofing

The chief advantage is that there is no need to install waterproofing on the upstand. The fiberglass fascia protects against any inflow of water. The upstand can be fitted on a plinth of any size, while preserving the size of the opening in the roof.

Declaration of Performance Reaction to Fire Classification Price on request

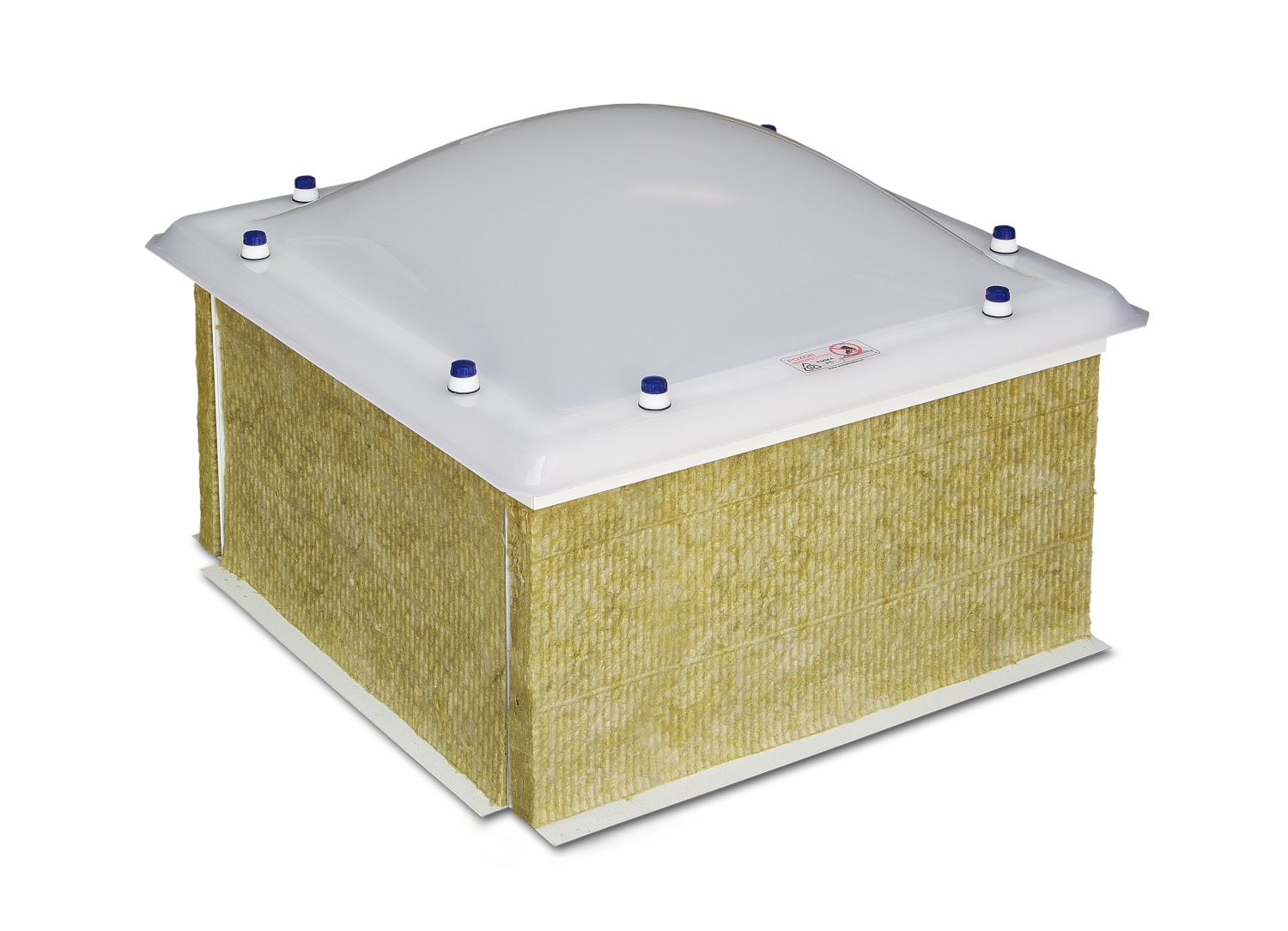

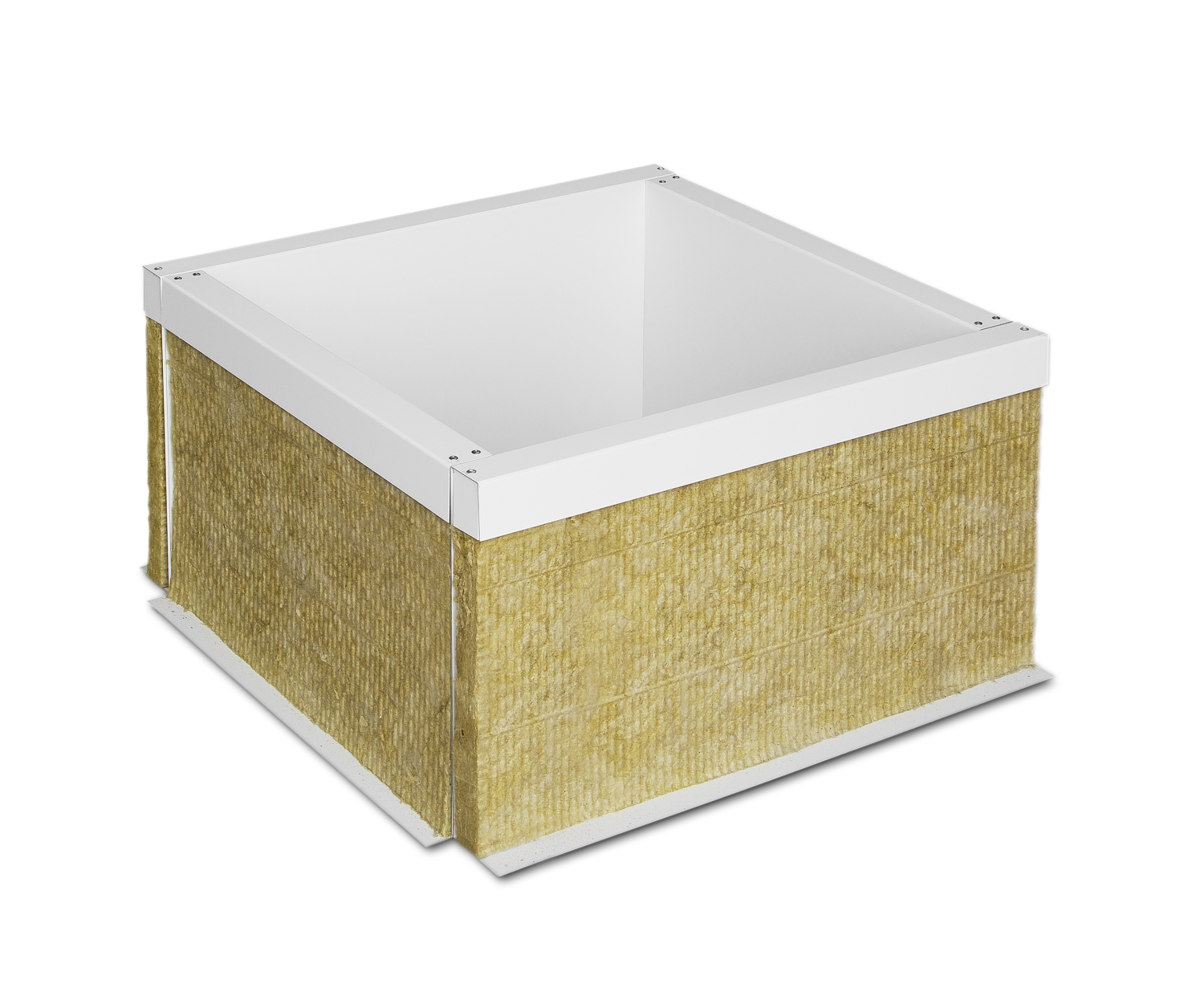

STEEL UPSTANDS

galvanized steel sheet 1.5 - 2 mm thick, color RAL 9010

Steel upstands are made from galvanized steel sheets 1.5 - 2 mm thick. They are insulated with mineral wool. Their heights are the same as the fiberglass upstands: 15 / 30 / 50 cm. The upstands come in RAL 9010 white.

Fire protocol Prices on request

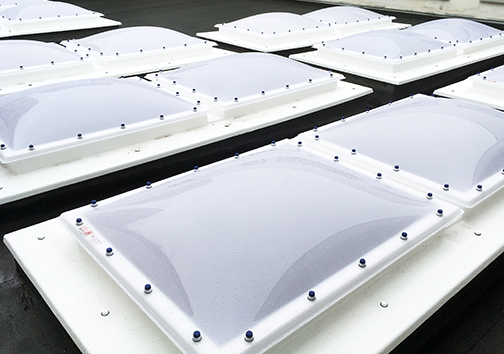

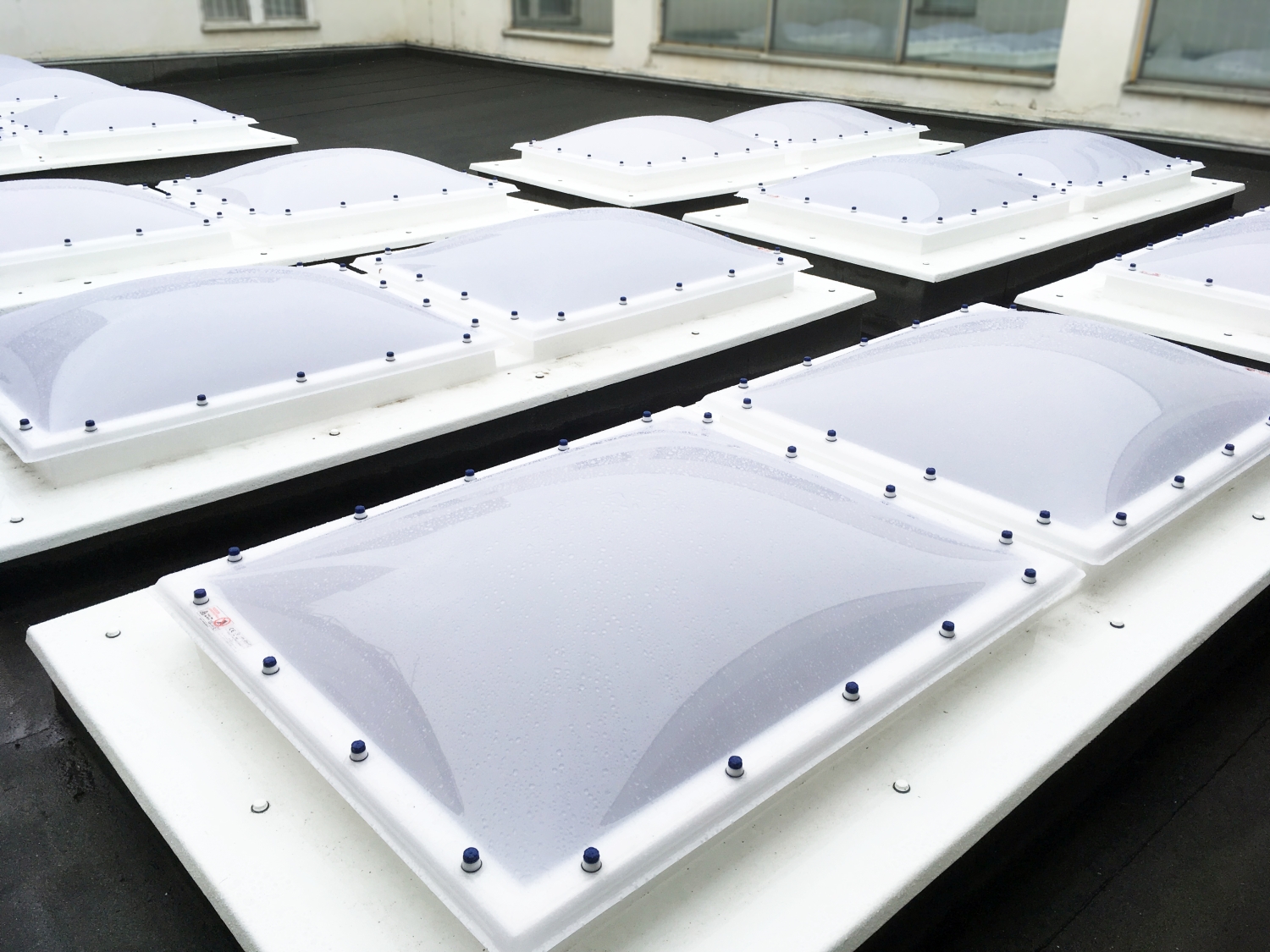

CUSTOM UPSTANDS - NO PRICE LIST, PRICES ON REQUEST

Upstands designed for non-standard measurements and profiles

Fiberglass upstands for large building dimensions. These upstands are produced on a one-off basis, and can be produced up to a maximum size of six meters. These upstands can be for any number of domes, and they can house any size of dome.

Declaration of Performance Reaction to Fire Classification Price on request
